[mythtv-users] Video card update fail
Allen Edwards
allen.p.edwards at gmail.com
Thu Oct 11 15:17:35 UTC 2018
On Wed, Oct 10, 2018 at 8:00 PM Stephen Worthington <
stephen_agent at jsw.gen.nz> wrote:
> On Wed, 10 Oct 2018 15:23:17 -0700, you wrote:
>
> >On Wed, Oct 10, 2018 at 2:57 PM Greg Oliver <oliver.greg at gmail.com>
> wrote:
> >
> >> On Wed, Oct 10, 2018 at 4:32 PM Allen Edwards <
> allen.p.edwards at gmail.com>
> >> wrote:
> >>
> >>>
> >>>
> >>> On Wed, Oct 10, 2018 at 2:12 PM Mark Perkins <perkins1724 at hotmail.com>
> >>> wrote:
> >>>
> >>>>
> >>>>
> >>>> On 11 October 2018 6:53:56 am Allen Edwards <
> allen.p.edwards at gmail.com>
> >>>> wrote:
> >>>>
> >>>>> My reply was too long with the log that Mark requested so it didn't
> get
> >>>>> posted. See end for comments without the log in THIS color.
> >>>>>
> >>>>>
> >>> Here is the log <http://l-36.com/mythtv.txt>. I tried Steven's patch
> >>> for the rtc and it didn't work. Not sure how important that is as I do
> not
> >>> see the audio video sync issues in the log.
>
> What does this command show:
>
> ls -al /dev/rt*
>
> This is what I get with my udev rule working:
>
> root at mypvr:~# ls -al /dev/rt*
> lrwxrwxrwx 1 root root 4 Oct 8 04:30 /dev/rtc -> rtc0
> crw-rw---- 1 root mythtv 249, 0 Oct 8 04:30 /dev/rtc0
>
I had root as the group. Changed it to mythtv. I must have implemented
only half your instructions.
I no longer see the "Could not open /dev/rtc:" error
dad at NewMyth:~$ ls -al /dev/rt*
lrwxrwxrwx 1 root root 4 Oct 10 13:21 /dev/rtc -> rtc0
crw-rw---- 1 root mythtv 251, 0 Oct 10 13:21 /dev/rtc0
The new log file is here: http://L-36.com/mythtv2.txt
I do still see an error on RTC
VSYNC: RTCVideoSync: Could not set RTC frequency:
eno: Permission denied (13)
I am still seeing artifacts, horizontal blocks. I am unsure if they are in
the source or in the playback. That will take some more careful checking.
But they are somewhere and we did not see that with Mythbunty 8 and the
6200. Of course, I can't prove that but I am pretty sure I would have
noticed them and they would have upset me sometime in the last 10 years.
>
> You can see that the /dev/rtc0 device is now group "mythtv". For this
> to work, mythfrontend must be running from a user that is also in
> group "mythtv". This command should show the users that are in group
> "mythtv":
>
> getent group mythtv | awk -F: '{print $4}'
>
> Then check that mythfrontend is running as one of those users:
>
> ps -ef | grep mythfr
>
> This is what I get:
>
> root at mypvr:~# getent group mythtv | awk -F: '{print $4}'
> stephen
> root at mypvr:~# ps -ef | grep mythfr
> stephen 4990 3102 0 15:52 ? 00:00:00 /bin/sh
> /usr/bin/mythfrontend --service
> stephen 5002 4990 14 15:52 ? 00:00:25
> /usr/bin/mythfrontend.real --syslog local7 -v media
> root 5263 29743 0 15:55 pts/2 00:00:00 grep --color=auto
> mythfr
>
> So mythfrontend.real is running as user "stephen" who belongs to group
> "mythtv".
>
> >>> I did notice a block of color in the playback and there was nothing in
> >>> the log at the time. This was just a few minutes ago and not the
> session
> >>> in the log. I also noticed using VLC on my desktop that it is in the
> >>> source file so not a Myth playback problem. That means it is either
> 1) in
> >>> the transmission 2) A receive error due to low signal strength, bad HD
> >>> Homnerun channel, etc, 3) a problem in the backend.
> >>>
> >>> I don't know if I can put photos in this list so here is a link to a
> >>> screen photo. http://L-36.com/mythtv.jpg
> >>>
> >>> For now I will see if these latest changes make "Wife Happy" again.
> >>>
> >>> Allen
> >>>
> >>
> >> I cannot remember (I think Mythbuntu 14) what version you said you were
> >> running on things, but I would make sure you are not using Wayland, but
> >> Xorg instead and use an older video driver (step down until you get
> desired
> >> results) if that does not fix it. I have no idea if Mythbuntu tracks
> >> Ubuntu version numbering, so unsure if Wayland is even there or not. I
> >> would not recommend using Wayland with 3rd party (non-kernel included)
> >> drivers - especially nVidia. I do not use Wayland for more important
> >> reasons to me, but it is worth a shot.
> >>
> >>
> >I am running Mythbuntu 16. If I said 14, it was an error. I am not sure
> >what Wayland is but I am running X11 so perhaps not Wayland.
>
> I do not think Wayland is in Mythbuntu 16.x. That happened in 17.10.
>
> >I will see what my wife thinks about the latest changes. I am now running
> >VDPAU Normal successfully. There are some video issues but at least the
> >one I saw was not in playback.
> >
> >I would still need to get audio to both the HiFi (SPDIF) and the TV
> >(analog). Right now I can do one or the other. The only thing I can
> think
> >of trying is to remove Pulse Audio which might have been installed by my
> >son as part of troubleshooting.
>
> Have you tried enabling both outputs in alsamixer and then selecting
> ALSA:default as the output in mythfrontend? That is what works for me
> to get analogue and SPDIF at the same time.
>
I tried it again just to make sure. All I get is the SPDIF output with ALSA
default.
What I find really strange is that I need to set Myth to the nvidia
settings to get analog.

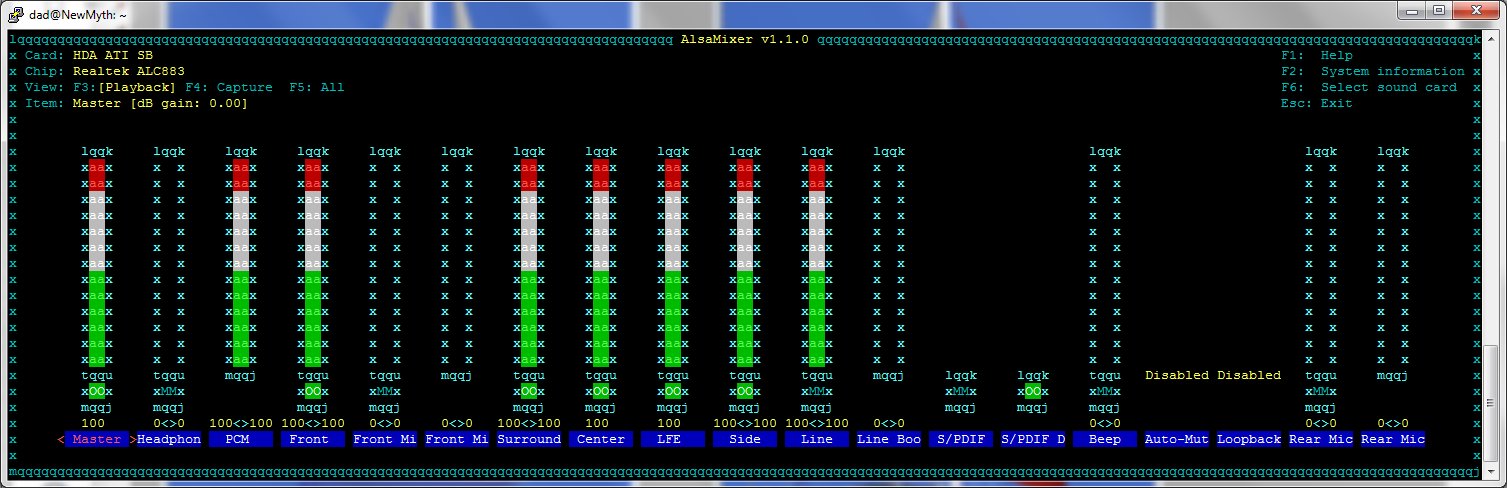

Here are the settings after I did the test this morning. Not what I set
but should have worked.
http://L-36.com/mythtv2.jpg
The ALSA behavior is consistent with the fact that YouTube only plays over
SPDIF in spite of the alsamixer settings.
It is also strange that something changes my alsamixer settings but master
and front are still unmuted so it should work
>
> >On a related topic, I can't seem to find which tuner was used to record a
> >program. I could swear that I could see that on the old Mythvuntu 8
> system.
>
> If you go to a recording and hit the I key twice (info on the remote)
> the "Recording Input:" line shows you that. Depending on your theme,
> you may need to scroll down to see it.
>
Just to be clear, I have two HD Home Runs and that translates to 8 tuners,
two per physical tuner. The information on which tuner was used for the
recording was not in the "I-I" information.
>
> >Also, the timer display on programs is gone. I probably need to start
> >different threads for these different problems if I can't find solutions
> >with Google.
>
> What do you mean by "timer display"? Are you talking about the
> progress bar across the bottom of the screen when you are playing a
> recording and hit the I key once?
>

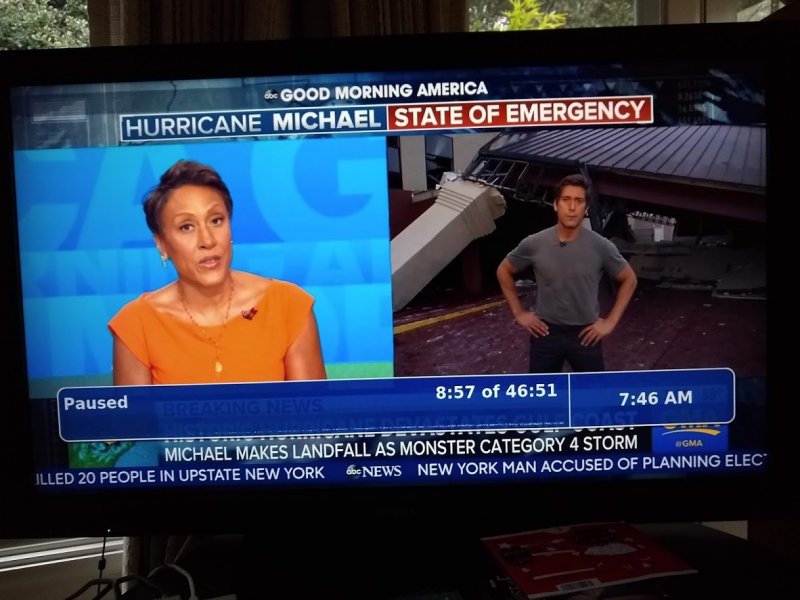

> Yes, the progress bar. It is gone suddenly.
http://L-36.com/mythtv3.jpg
>
> I am still looking at your mythfrontend log file, but there are a
> couple of obvious things so far. Your desktop size is showing as:
> Desktop video mode: 2560x1024 60.000 Hz
>
> which is a rather strange size. Here is what mine shows:
>
> Desktop video mode: 1920x1080 59.939 Hz
>
> which matches my TV screen size.
>
> I also have:
>
> UI Screen Resolution: 1920 x 1080
>
> where you have:
>
> UI Screen Resolution: 1280 x 720
>
> So what sort of screen are you using? What is its native size and
> frequency and what other output modes can it handle? And what theme
> are you using?
>
> Generally, things work better when the output you are sending to the
> screen matches the physical screen size. TVs and monitors can handle
> output of a different size to the screen, but they may have to
> re-render it to do so, which can cause artifacts. US TVs are
> typically quite limited in the number of modes they support, where in
> other parts of the world they support many different modes for various
> NTSC and PAL screen sizes and frequencies.
>
> From a terminal session opened on the X display, try running this
> command:
>
> xrandr
>
> It should show all the video modes that are available for your display
> and video card/driver combination. Here is what mine shows:
>
> root at mypvr:~# xrandr
> Screen 0: minimum 8 x 8, current 1920 x 1080, maximum 8192 x 8192
> DVI-I-0 disconnected (normal left inverted right x axis y axis)
> VGA-0 disconnected (normal left inverted right x axis y axis)
> DVI-I-1 connected primary 1920x1080+0+0 (normal left inverted right x
> axis y axis) 1600mm x 900mm
> 1920x1080 60.00 + 59.94* 50.00 23.97 60.05 60.00
> 50.04
> 1280x1024 60.02
> 1280x720 60.00 59.94 50.00
> 1024x768 60.00
> 800x600 60.32
> 720x576 50.00 50.08
> 720x480 59.94 60.05
> 640x480 59.94 59.93
> HDMI-0 disconnected (normal left inverted right x axis y axis)
>
> I have an Nvidia 220 card and an old Sony Bravia KDL-32V5500 TV. It
> native display is 1920x1080 and 50 Hz, but it supports most other
> TV/video frequencies, as you can see on the 1920x1080 line above.
>
VGA-0 connected 1280x1024+0+0 (normal left inverted right x axis y axis)
338mm x 270mm
1280x1024 60.02*+ 75.02
1024x768 75.03 70.07 60.00
800x600 75.00 72.19 60.32 56.25
640x480 75.00 72.81 59.95 59.94
DVI-D-0 connected primary 1280x720+1280+0 (normal left inverted right x
axis y axis) 1600mm x 900mm
1920x1080 60.00 + 59.94 23.98 60.05 60.00
1440x480 60.05
1280x1024 60.02
1280x720 60.00* 59.94
1024x768 60.00
800x600 60.32
720x480 59.94
640x480 59.94 59.93
HDMI-0 disconnected (normal left inverted right x axis y axis)
I do not know where the 2560x1024 comes from.
I have two displays. One is a projector and one a Sony TV. The projector
is 1024x720 and as the HDTV OTA source is generally that resolution, I just
set things up for that. I have a DVI splitter so the signal goes to both
the TV and the projector at the same time. I have not tried to get that to
work and the sound must be digital for that to be useful so I am a ways
from that. Right now I have disconnected the splitter because the TV was
reporting invalid signals with it inline. I assume it would work now that I
have the resolution locked to a valid value.
Allen
